LUMINAIRE:
MODEL: Darwin LED
PART NO: LKD-DAR-(Lighting Design Code)

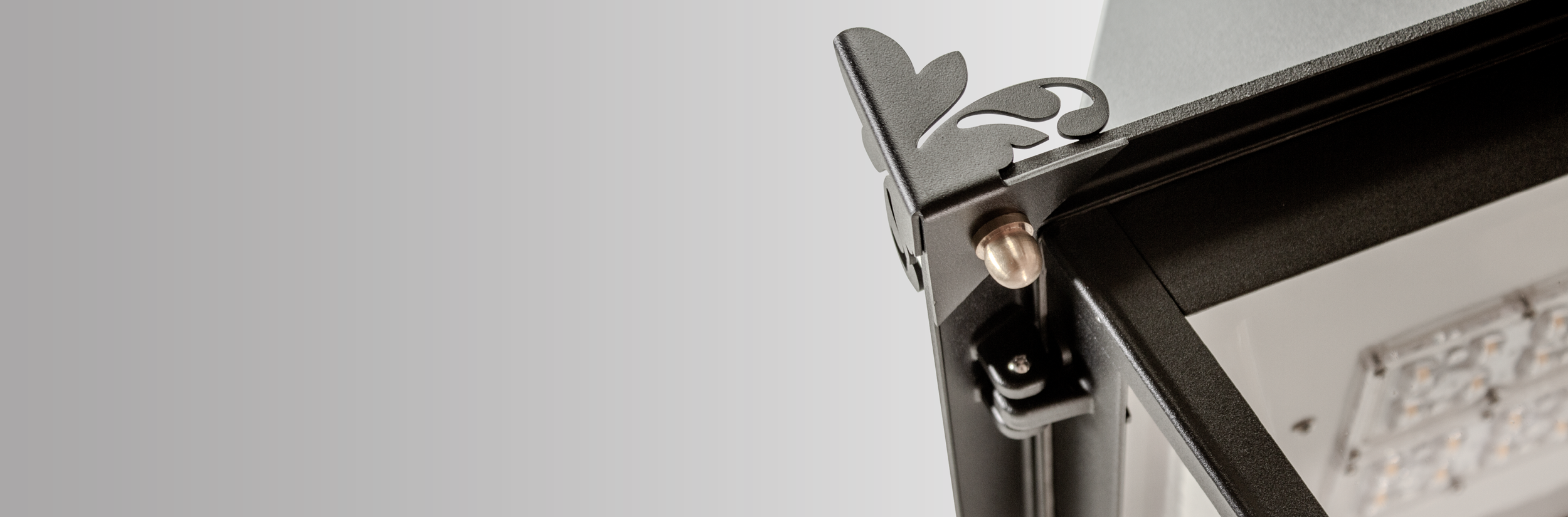

DESCRIPTION: Darwin Heritage LED Luminaire
INGRESS PROTECTION: IP65
IMPACT RATING: IK08
WEIGHT: 10KG
WIND FACTOR: 0.42
MATERIALS:
LM6 Cast & CNC Aluminium / PMMA OPTIC / Polycarbonate Enclosure / BZP Steel & Brass Fasteners
SPIGOT SIZE: 76 MM (Post Top) Top Hung (BSP or QuickRelease)
SPIGOT FIXING: 4 x M8 GRUB SCREW
MODEL RANGE:
NOMINAL WATTAGE: 8w - 88w
LUMEN OUTPUT*: 1216Lm - 13376Lm
LUMEN EFFICACY*: 152Lm/W
LED QUANTITY: 8LED - 66LED
*Dependent on Colour Temperature, drive current & LED quantity
COLOUR TEMPERATURE: 2200K - 5000K
OPTICS:
SP- (GLARE G3)
MEC- (GLARE G6)
*More optics available from LEDiL.Inc
ELECTRICAL DATA:
INPUT VOLTAGE: 100-277VAC (85-305)
OUTPUT VOLTAGE: 77-149V
OPERATING FREQUENCY: 50-60HZ
SURGE PROTECTION: 10KVA
FUSED PROTECTION: 2 X 6.3A
OVERVOLTAGE PROTECTION: 500V
INTERNAL CABLE: 1MM HEV 500V
DRIVER OPTIONS: 0-10V, DALI, CLO, NON DIMMING
LIFESPAN CHARACTERISTICS*:
LM80/TM21 DATA:
L90: 102,000HRS
L80: 114,000HRS
L70: 123,000HRS
FAILURE RATE (By):
B10: 104,000 HRS
*test based on various CCT range of Specified Lighr Engines mounted in 30 x Enclosed Lumianaires. Test conducted at 25°C ambient with Philips Driver preset at 700MA, LED junction temperature recorded at 105°C. Test duration was for a total of 12,000 hours & no failures were recorded during testing.
LED DATA:
LED MODEL:
SP-PHILIPS LuxeOn REBEL 3030
CRI: 80+
CRI SHIFT OVER LIFE: 2%
ACCREDITATION:
CE CERTIFICATE
ROHS CERTIFICATION
REACH
LIAQA
ENEC
